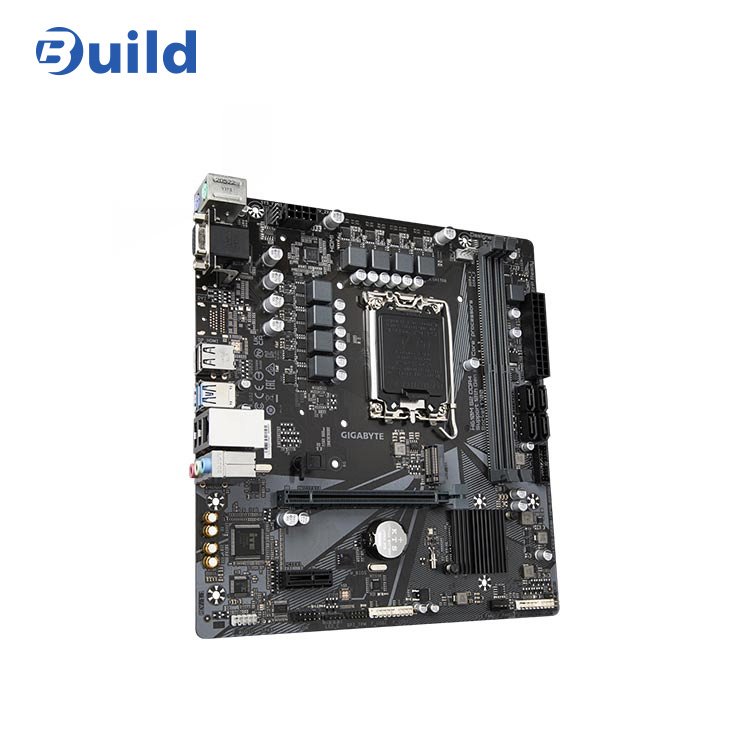

Gigabyte H610M S2 DDR4
Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Realtek Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6
Gigabyte H610M S2 DDR4 Motherboard Features
6 + 1 + 1 phases hybrid power design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy load.6 + 1 + 1 low phase RDS (on) MOSFETs
Solid capacitors for improved transient response and reduced oscillation.
8-pin hard core CPU power connector.Exclusive Realtek 8118 Gaming LAN
High-speed gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance, gamer-friendly network chip with automatic bandwidth allocation to ensure the highest network priority in a game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.Solid power connectors
H610 motherboards feature ATX 12V 8pin solid state power connectors to provide a stable power supply during CPU overload.
Advantages of a solid power connectorLarger contact area for electricity
More metal for higher energy conservation and heat generation
Ultra durable and longer lifeBIOS
The BIOS is necessary for users during the initial setup to allow for optimal settings. With a new graphical user interface and easier-to-use functions, GIGABYTE has reinvented the BIOS to give users a better experience while setting up their new system.Gigabyte H610M S2 DDR4 motherboard specifications
Always follow us to get the best offers through our website buildtechnology.net
Or through our Facebook page- Product details
Onboard Graphics - Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
Audio - Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots - 1 x PCI Express x16 slot, running at x16
- 1 x PCI Express x1 slot
USB - Chipset
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- CPU
Internal I/O Connectors - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 2 x system fan headers
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

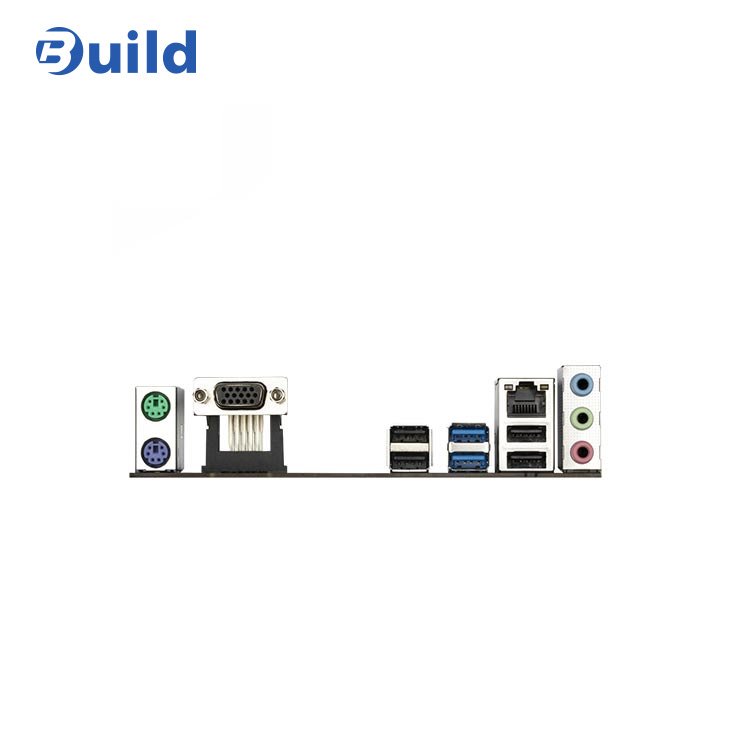

Back Panel Connectors - 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
H/W Monitoring - iTE® I/O Controller Chip
BIOS - 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features - Support for APP Center
- Support for Q-Flash
- Support for Xpress Install
Bundled Software - Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System - Norton® Internet Security (OEM version)
- LAN bandwidth management software
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
