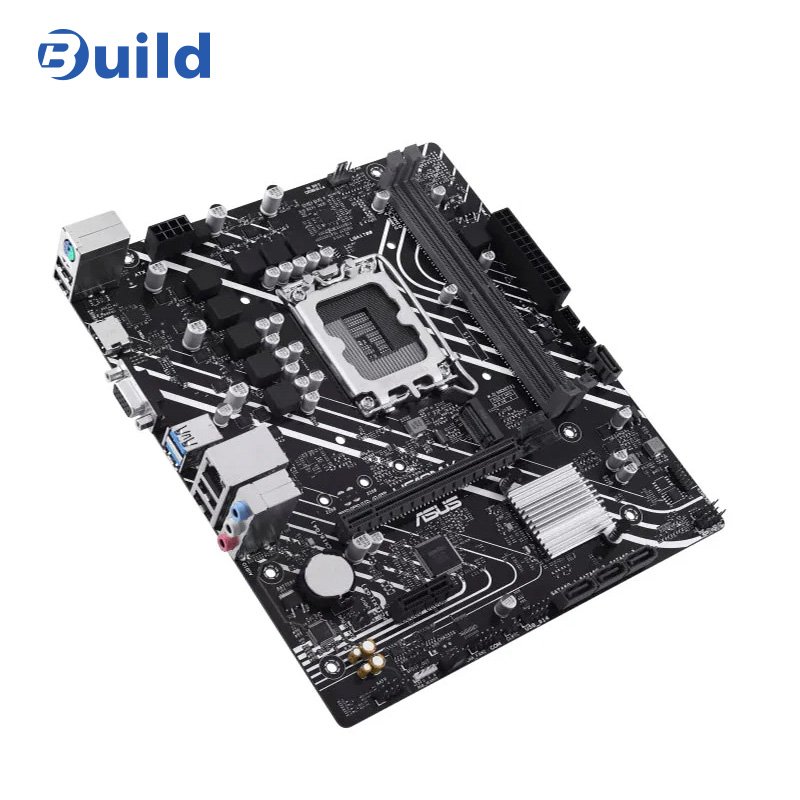

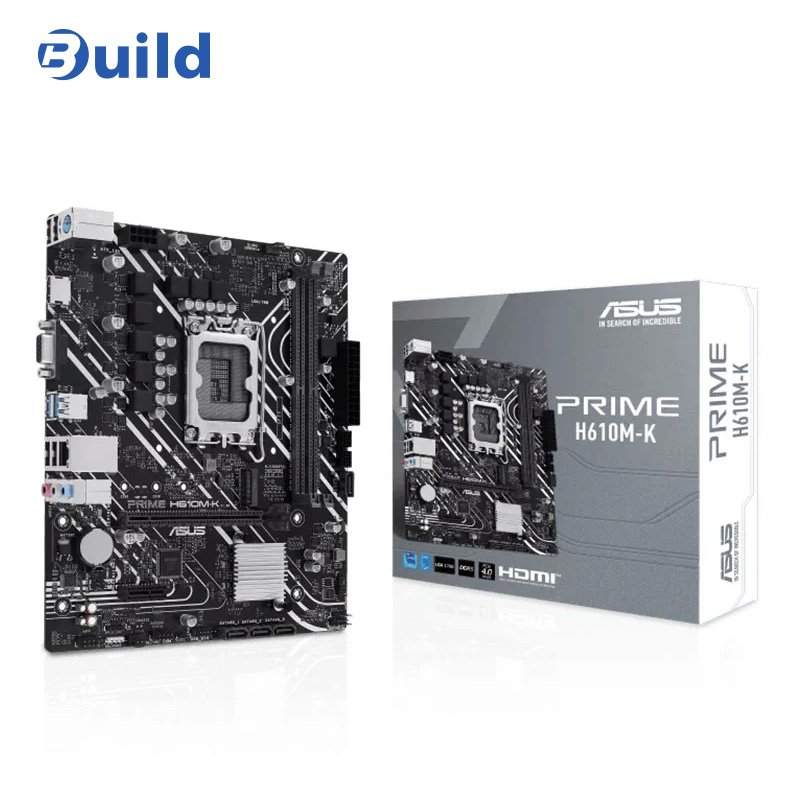

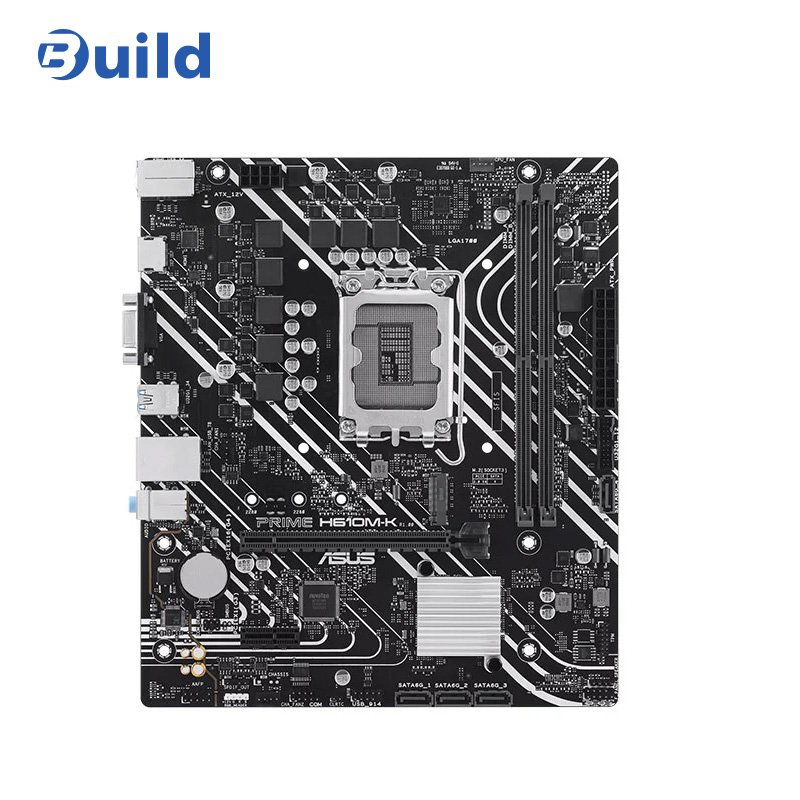

Asus Prime H610M K DDR5 Motherboard

• Model

• PRIME H610M-K DDR5

• CPU

• Intel^® Socket LGA1700 for 13^th Gen Intel^® Core^™ & 12^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors*
• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

• Chipset

• Intel^® H610 Chipset

• Memory

• 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel^® Extreme Memory Profile (XMP)

• Graphics

• 1 x VGA port
• 1 x HDMI^™ port**

• Expansion Slots

• Intel^® 13^th & 12^th Gen Processors
• 1 x PCIe 4.0 x16 slot
• Intel^® H610 Chipset
• 1 x PCIe 3.0 x1 slot
• – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

• Intel^® H610 Chipset
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports

• Ethernet

• 1 x Realtek 1Gb Ethernet

• USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 4 ports)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – Supports up to 24-Bit/192 kHz playback
• Audio Features
• – Audio Shielding
• – Premium audio capacitors
• – Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x VGA port
• 1 x HDMI^™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM Port header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III
• – DIGI+ VRM
• – LANGuard
• – Overvoltage Protection
• – SafeSlot Core
• – Stainless-Steel Back I/O
• ASUS Q-Design
• – Q-DIMM
• – Q-LED Core
• – Q-Slot
• ASUS Thermal Solution
• – Aluminum heatsink design
• ASUS Lighting Control
• – RGB header

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• – Fan Xpert 2+
• AI Suite 3
• – EPU
• – DIGI+ VRM
• – PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 Anchor
• Documentation
• 1 x User guide

• Operating System

• Windows^® 11, Windows^® 10 64-bit

• Form Factor

• micro-ATX Form Factor
• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
• PRIME H610M-K DDR5
